ACCU-SCOPE® 3000-LED SERIES

ACCU-SCOPE Logo

Authorized Distributor

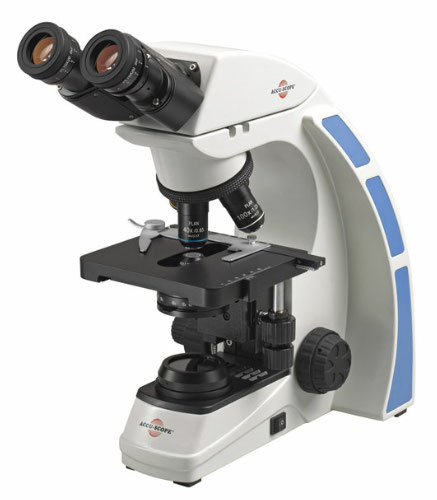

ACCU-SCOPE 3000-LED

ACCU-SCOPE's 3000-LED Series has an ergonomic design with outstanding optics, illumination and durability. This microscope is a superb choice for clinical labs in universities, medical and veterinary practices.

Request Quote Product Brochure Other Configurations

Specifications

Optical System Infinity optical system, f = 180mm, Anti-Mold
Viewing Head Siedentopf type, inclined 30°; interpupillary distance adjustment 48-75mm, 360° rotatable; available in binocular or trinocular configurations
Eyepieces HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent classroom tampering. Eyepiece accepts a Ø20.5mm reticle
Nosepiece Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration.
Objectives Standard configuration: Infinity Plan Achromat 4x, 10x, 40xR* and 100xR oil
Stage Stage size 140mm x 132mm with X-Y movement range of 76mm x 50mm
Condenser N.A. 1.25 Abbe condenser (with slot for sliders) on a rack and pinion with iris diaphragm; glass lens in condensing system protects iris diaphragm from classroom tampering
Stand Cast alloy aluminum.
Illumination 3 watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use
Focusing System Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear.
Accessories Dust cover, immersion oil and instruction manual, universal power supply 110v-240v.
Microscope Dimensions: Standard Configuration 387mmL x 196mmW x 391mmH
Physical weight 16lbs.
Warranty 5 year limited warranty for parts, labor, and electronic components. 1 year warranty on LED bulb.

Optional Accessories

  • Digital camera
  • Trinocular viewing head with 50/50 light split
  • Plan achromat objectives: 20xR, 50xR oil, and 60xR
  • Plan phase objectives: 10x, 20xR, 40xR, and 100xR oil
  • Phase contrast sliders: 10x/BF/40x and 20x/BF/100x
  • Darkfield slider (4x - 40x)
  • Reticles
  • Simple polarizer/analyzer
  • Field diaphragm, 5 hole nosepiece
  • Microscope carry case
