ACCU-SCOPE® 3012 Series

ACCU-SCOPE Logo

Authorized Distributor

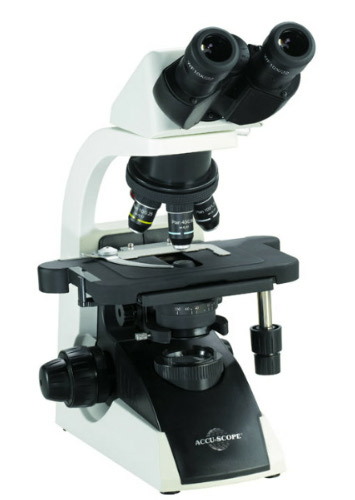

ACCU-SCOPE 3012

ACCU-SCOPE's 3012 Series offers excellent resolution for entry level applications including fluorescence, phase contrast, darkfield and simple polarization. Modular design for flexibility and options to meet your budget. For easy viewing, the eyepiece tubes can be rotated up to 180° to adjust eyepoint height for individual users.

Request Quote Product Brochure Other Configurations

Specifications

Optical System Infinity optical system, f = 200mm, Anti-Mold
Viewing Head Siedentopf type, inclined 30°; interpupillary distance adjustment 47-75mm, 360° rotatable; available in binocular or trinocular configurations. Eyepoint height is adjustable and can be raised 35mm when the interpupillary distance is 64mm by rotating the eyepiece tubes up 180° to accommodate the needs of various users.
Eyepieces WF 10x focusable eyepieces, 22mm field of view. Eyepieces are locked-in to prevent classroom tampering. Eyepiece accepts Ø26.5mm reticle.
Nosepiece Rear facing quintuple, ball bearing nosepiece with positive click stops to ensure parcentration.
Objectives Standard configuration: Infinity Plan Achromat 4x, 10x, 40xR* and 100xR oil*
Stage Rackless, scratch resistant rectangular stage, 188mm x 150mm surface area with 78mm x 54mm cross travel using low-position X-Y coaxial control knobs
Condenser N.A. 1.25 Abbe condenser with aperture diaphragm and position guide marks for each objective and filter holder
Stand Cast alloy aluminum with built in carrying handle and removable lamp house for easy bulb replacement
Illumination 5 watt LED (20,000 hour rated life). Optional field diaphragm available.
Focusing System Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear.
Accessories Dust cover, immersion oil and instruction manual, universal power supply 110v-240v.
Microscope Dimensions: Standard Configuration 10"L x 9.25"W x 16.75"H
Physical weight 16lbs.
Warranty 5 year limited warranty for parts, labor, and electronic components. 1 year warranty on LED bulb.

Optional Accessories

  • Digital camera
  • Trinocular viewing head 50/50 light split
  • 15x and 20x eyepieces
  • Plan achromat objectives: 20xR, 50xR oil, 60xR
  • Plan phase objectives: 10x, 20xR, 40xR, 100xR
  • Fluorescence attachment, 2 position filter slider
  • Phase contrast sliders: 10x/BF/40x and 20x/BF/100x
  • Darkfield slider
  • Turret phase condenser - BF, 10x, 40x, 100x annuli positions
  • Reticles
  • Simple polarizer/analyzer
  • Blue filter
  • Field diaphragm, cord hangers
  • Microscope carry case
