ACCU-SCOPE® 3072 SERIES

ACCU-SCOPE Logo

Authorized Distributor

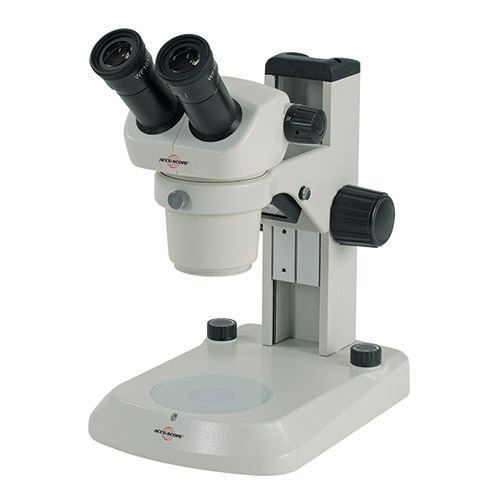

ACCU-SCOPE 3072

ACCU-SCOPE's 3072 Series provides professional features for classroom applications, hobbyists or light industrial inspections. A long working distance, bright illumination and crisp optics are all part of this great, value-priced microscope.

Request Quote Product Brochure

Specifications

Optical System Fixed magnifications: 1x/2x, 1x/3x, or 2x/4x
Viewing Head Binocular viewing head, inclined 45°, interpupillary distance adjustment 55-75mm, diopter adjustment +/-5
Eyepieces WF10x focusable eyepieces with roll down eyeguards, 20mm field of view. Eyepieces are locked-in.
Objectives Fixed magnification objectives. Easily rotatable side mount magnification change knob. A 1.0X glass lens shield is included.
Focusing System Dual focusing knobs with adjustable tension control for rapid and easy focusing.
Stand Available with an incident/transmitted LED light base with universal power supply (110-220v), or plain dovetail, pole, boom, ball bearing boom, or flex arm stands with coarse focus adjustment.
Accessories Dust cover, eyeguards and instruction manual
Shipping Dimensions 12.25"W x 14.25"D x 21"H
Physical weight 9lbs.
Warranty 5 year limited warranty for parts, labor, and electronic components. 1 year warranty on LED bulb.

Optical Data

Eyepiece Objectives
1X 2X 3X 4X
WF10X/20mm Total Magnification 10X 20X 30X 40X
Field of View (mm) 20 10 6.67 5
WF15X/26mm Total Magnification 15X 30X 45X 60X
Field of View (mm) 16 8 5.33 4
WF20X/12mm Total Magnification 20X 40X 60X 80X
Field of View (mm) 12 6 4 3
Working Distance 100mm 100mm 100mm 100mm

Optional Accessories

  • Eyepieces: 15x/16mm and 20x/12mm
  • Auxiliary objectives: 0.5X (180mm W.D.), 0.63X (137mm W.D.), 0.75X (120mm W.D.), 2X (30mm W.D.)
  • Reticles
  • Microscope carry case
