ACCU-SCOPE 3075 SERIES

ACCU-SCOPE Logo

Authorized Distributor

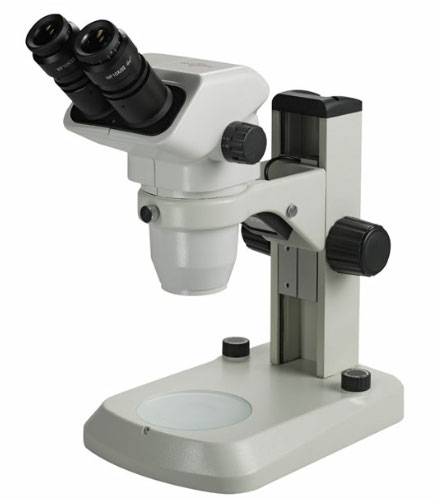

ACCU-SCOPE 3075

ACCU-SCOPE's 3075 zoom stereo, with an advanced Greenough optical system offers excellent flatness and depth, as well as unprecedented clarity, detail and accurate color rendition. The 3075 is a popular choice for industrial, OEM, and classroom settings.

Request Quote Product Brochure

Specifications

Optical System Greenough
Viewing Head Binocular viewing head, inclined 45°. Interpupillary distance adjustment 54-76mm.
Eyepieces WF 10x focusable eyepieces, 22mm field of view.
Objectives Zoom magnification objective 0.67x-4.5x
Stage Diffused stage plate in the base provides even illumination (on LED versions). Black and white contrast plates are also included
Stand Cast alloy aluminum
Illumination Each stand has specific illumination characteristics. All LED stands are provided with incident and transmitted illumination.
Focusing System Dual focusing knobs with adjustable tension control on all LED, Plain Focusing and Pole Stands.
Accessories Dust cover, eyeguards, and instruction manual.
Warranty 5 year limited warranty for parts, labor, and electronic components. 1 year warranty on LED bulb.

Optical Data

Objective 0.3X 0.4X 0.5X .75X 1X 1.5X 2X
Working Distance 287mm 217mm 177mm 117mm 100mm 47mm 26mm
10X Magnification 2.0x-13.5x 2.7x-18.0x 3.4x-22.5x 5.0x-33.8x 6.7x-45.0x 10.1x-67.5x 13.4x-90.0x
View Field (mm) 109.5-16.3 82.1-12.2 65.7-9.8 43.8-6.5 32.8-4.9 21.9-3.3 16.4-2.4
15X Magnification 3.0x-20.3x 4.0x-27.0x 5.0x-33.8x 7.5x-50.6x 10.1x-67.5x 15.1x-101.3x 20.1x-135x
View Field (mm) 79.6-11.9 59.7-8.9 47.8-7.1 31.8-4.7 23.9-3.6 15.9-2.4 11.9-1.8
20X Magnification 4.0x-27.0x 5.4x-36.0x 6.7x-45.0x 10.1x-67.5x 13.4x-90.0x 20.1x-135.0x 26.8x-180x
View Field (mm) 59.7-8.9 44.8-6.7 35.8-5.3 23.9-3.6 17.9-2.7 11.9-1.8 9-1.3
25X Magnification 5.0x-33.8x 6.7x-45.0x 8.4x-56.3x 12.6x-84.4x 16.8x-112.5x 25.1x-168.8x 33.5x-225x
View Field (mm) 44.8-6.7 33.6-5.0 26.9-4.0 17.9-2.7 13.4-2.0 9.0-1.3 6.7-1.0
30X Magnification 6x-40.5x 8x-54x 10x-67.5x 15x-101x 20x-135x 30x-202x 40x-270x
View Field (mm) 34.8-5.1 26.1-3.87 20.9-3.1 13.9-2.1 10.4-1.55 6.9-1 5.2-7.5

Optional Accessories

  • Digital & HD cameras
  • Eyepieces: 15x, 20x, 25x
  • Auxiliary objectives: 0.3x, 0.4x, 0.5x 0.75x, 1x, 1.5x and 2x
  • LED ring lights
  • Fluorescent ring lights
  • Microscope carry case
