ACCU-SCOPE 3078-HDR ZOOM SERIES

ACCU-SCOPE Logo

Authorized Distributor

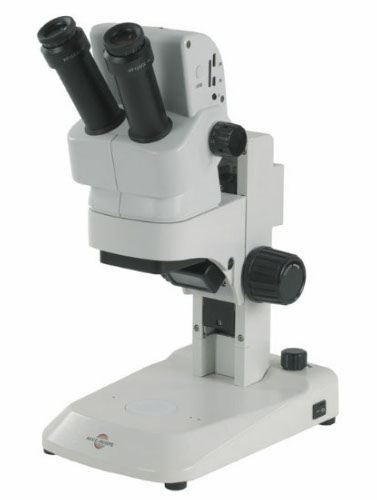

ACCU-SCOPE 3078-HDR Stereo Zoom Microscope

ACCU-SCOPE's 3078-HDR Zoom stereo provides superior HD quality live video with fast live imaging for an HD display. This model has an integrated SD card for image capturing and an 8x-35x zoom range for high resolution images which can be captured on the 5 Megapixel CMOS Camera directly onto the SD card and transferred to a computer via the USB port for additional analysis. All these features make this microscope a beautiful choice for professional industrial applications or educational settings.

Request Quote Product Brochure

Specifications

Optical System Greenough
Viewing Head Binocular viewing head, inclined 60°. Interpupillary distance adjustment 50-75mm.
Eyepieces WF 10x focusable eyepieces, 22mm field of view.
Objectives Zoom magnification objective 0.8x-3.5x
Working Distance 95mm
Stage Diffused stage plate in the base provides even illumination
Stand Cast alloy aluminum
Illumination 5 watt LED transmitted and incident variable illuminators. Maintenance-free estimated bulb life of 25,000 hours. Universal power supply 100v – 240v.
Focusing System Dual focusing knobs with adjustable tension control. Focusing range of 90mm.
Accessories Remote control, 4GB SD card, HDMI cable, USB cable, dust cover, eyeguards, and instruction manual.
Warranty 5 year limited warranty for parts, labor, and electronic components. 1 year warranty on LED bulb.

Digital Specifications*

Camera 5 megapixel CMOS built-in camera system
Remote Control Allows for simple and easy image and video capture control, as well as ability to adjust camera settings
Digital Output USB 2.0 PC Compatible
HDMI Port 1080p High Definition output for desktop or large HD displays
Integrated Slot SD (Secure Digital); 4GB SD card included
Recording Camera record push button control for image capture
* Design, features and specifications are subject to change without notice.

Optional Accessories

  • HD Monitors
  • Eyepieces: 15x, 20x, 25x
  • Microscope carry case
  • Micrometrics® Image Analysis Software
