ACCU-SCOPE® 3080 SERIES

ACCU-SCOPE Logo

Authorized Distributor

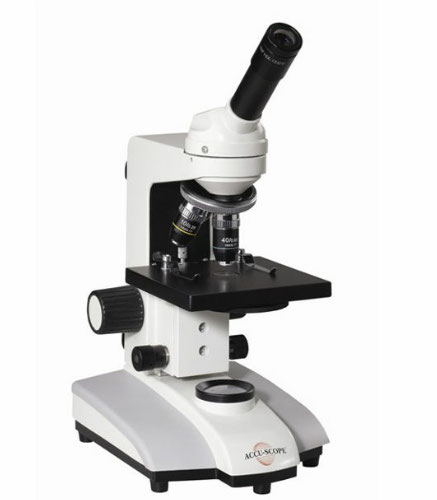

ACCU-SCOPE 3080

ACCU-SCOPE's 3080 Series is affordable and durable. Built to withstand heavy classroom use, this microscope is a great choice for educational settings.

Request Quote Product Brochure

Specifications

Optical System DIN Optical System, f=160mm
Viewing Head Monocular head, inclined 45° and 360° rotatable
Eyepieces WF10x eyepiece, 18mm field of view with pointer. Eyepieces are locked-in to prevent classroom tampering.
Nosepiece Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration.
Objectives Standard configuration: DIN Achromat 4x, 10x, 40xR* (*spring-loaded)
Stage Stage size 123mm x 129mm with stage clips.
Condenser N.A. 0.65 condenser with five aperture disc or iris diaphragm depending on the model.
Stand Cast alloy aluminum with built-in cord hangers.
Illumination 7 watt fluorescent illuminator. Bulb is rated for 10,000 hours.
Focusing System Separate coarse and fine focus adjustments controls. A tension adjustment is on the coarse control. Built-in clutch system and pre-set focus stop prevents accidental damage to objectives and slides.
Accessories Dust cover and instruction manual
Microscope Dimensions 229mmL x 165mmW x 381mmH
Physical weight 8lbs.
Warranty 5 year limited warranty for parts, labor, and electronic components.

Optional Accessories

  • Inclined / vertical teaching head
  • WF15x and WF20x eyepieces
  • 20xR objective
  • Mirror and fork
  • Microscope carry case
