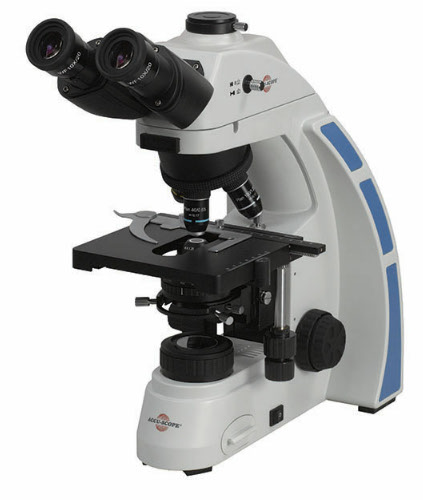

ACCU-SCOPE's new EXC-350 Microscope Series delivers a new level of optical performance, and versatility. Built to last, with an enhanced, newly developed LED illumination system and infinity plan objectives, the EXC-350 provides brighter, sharper and crisper images than ever before. The EXC-350 Series' modular design is compatible with many accessories for fluorescence, phase contrast and darkfield applications.
Specifications
| Optical System | Infinity optical system, f = 200mm, anti-mold. |
|---|---|
| Viewing Head | Trinocular, Siedentopf type. Inclined 30°, rotatable 360°. Eyepoint height can be adjusted 180° to accommodate users of different builds. Interpupillary distance adjustment 50mm-75mm. |
| Eyepieces | WF 10x/20mm focusing eyepieces. Eyepieces can be locked-in. Eyepiece accepts a 26.5mm reticle. Optional 12.5x, 15x and 20x eyepieces are also available. |
| Nosepiece | Rear facing quintuple, ball bearing nosepiece with positive click stops to ensure parcentration. A quadruple nosepiece is also available. |
| Objectives | Standard configurations include Infinity Plan achromat 4x, 10x, 40xR* and 100xR oil* (*spring-loaded). |
| Stage | Stage size 150mm x 110mm with X-Y movement range of 76mm X 50mm. |
| Condenser | Abbe condenser 0.9 dry/1.25 oil (with slots for sliders) on a rack and pinion with iris diaphragm. |
| Stand | Cast alloy aluminum. |
| Illumination | 3 watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use. Universal power supply 110v-240v. |
| Focusing System | Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear. |
| Accessories | Dust cover, immersion oil and instruction manual. |
| Microscope Dimensions | 294mmL x 199mmW x 397mmH |
| Physical weight | 24lbs. |
| Warranty | 5 year limited warranty for parts, labor, and electronic components. 1 year warranty on LED bulb. |
Optional Accessories
- Digital camera
- Fluorescence attachments
- Plan achromat objectives: 20xR, 50xR oil, and 60xR
- Plan phase objectives: 10x, 20xR, 40xR and 100xR oil
- Turret phase and slider phase contrast set
- Darkfield slider (4x-40x)
- Simple polarizer/analyzer
- Reticles
- Microscope carry case
