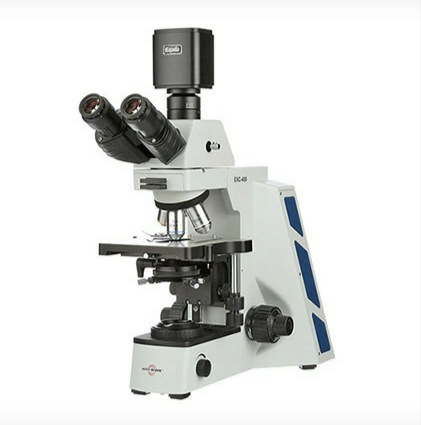

ACCU-SCOPE's EXC-400 Series meets the demands of clinical laboratories, providing performance and value for routine analysis in pathology, dermatology, histology and cytology applications. Modular configuration allows for budget-friendly customization of the microscope. The EXC-400 Series design delivers crisp, high resolution, bright images, featuring Infinity Plan Achromat, Plan semi-Apochromat, or Plan Phase objectives. Shown here with optional Excelis camera.
Specifications
| Optical System | Infinity optical system, f = 180mm, Anti-Mold |
|---|---|
| Viewing Head | Trinocular (0:100, 50:50 split), inclined 30°, rotatable 360°; or Trinocular (0:100, 100:0 split) inclined 30°, rotatable 360°
Optional two head front-to-back or side-by-side teaching configurations |
| Eyepieces | WF 10x/22mm focusable eyepieces with diopter adjustment and eyeguards Optional 12.5x, 15x (accepts 20mm reticle) and 20x eyepieces are available |
| Nosepiece | Reversed quintuple, ball bearing nosepiece with positive click stops to ensure parcentration. |
| Objectives | Standard configuration: Infinity Plan Achromat 4x, 10x, 40xR* and 100xR oil (*spring-loaded)
Optional Plan Achromat 20x, 50xR oil, 60xR and 100x Dry, or NIS S-Plan APO or Plan Phase objectives are available |
| Stage | Ceramic, hard-coated mechanical stage with low position coaxial controls; stage size 175mm x 153mm with X-Y movement range of 76mm X 50mm |
| Condenser | Achromat swing-out condenser, N.A. 1.25 on a rack and pinion with iris diaphragm |
| Stand | Cast alloy aluminum. |
| Illumination | 3 watt LED with variable intensity control and field iris diaphragm; LED bulb is rated for over 20,000 hours of continued use; universal power supply 110v-240v |
| Focusing System | Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories | Dust cover, immersion oil and instruction manual |
| Microscope Dimensions: Standard Configuration | 460mmL x 245mmW x 430mmH |
| Physical weight | 27.5lbs. |
| Warranty | 5 year limited warranty for parts, labor, and electronic components. 1 year warranty on LED bulb. |
Optional Accessories
- Digital camera
- Multi-viewing configurations (2 side-by-side, or 2 front-to-back viewing positions)
- Plan achromat objectives: 2x, 20x, 40xR, 50xR oil, 60xR, 100xR oil, 100x dry
- NIS S-Plan APO objectives: 4x, 10x, 20x, 40xR, 100xR
- Turret phase contrast condenser 10x, 20x, 40x and 100xR Phase annuli and Plan Phase objectives
- Fluorescence attachments, fluorescence filters sets
- Phase contrast attachments
- Analyzer, polarizer, 360° rotatable polarizer, gout kit
- 45mm LBD, yellow, green and ND filters
