ACCU-SCOPE® EXC-500 Microscope Series

ACCU-SCOPE Logo

Authorized Distributor

ACCU-SCOPE EXC-500

ACCU-SCOPE's new EXC-500 Series offers best-in-class performance and value for clinical laboratory and research applications. The newly designed NIS optical system provides sharp, crisp images via Plan achromat or S-Plan APO objectives. The EXC-500 Series' modular design is compatible with many accessories for research, fluorescence, phase contrast and darkfield applications. The optical path beam splitter provides three viewing methods: 0:100, 100:0, and 80:20. The tilting trinocular allows for user comfort. An innovative rackless mechanical stage features a Gorilla™ glass stage insert and allows the user to clearly and easily see specimens while moving the slide on the stage. This is a top-seller for pathology and cytology labs. The EXC-500 has motion sensing Eco-illumination which automatically turns off the LED illuminator when it detects the user has left for 30 minutes, a great energy and lamp saving feature.

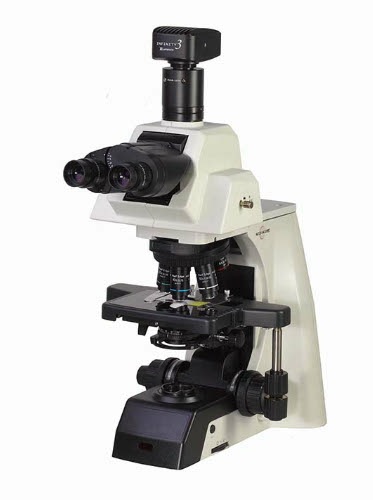

Trinocular configuration shown here with optional Lumenera® Infinity 3 Camera.

Watch EXC-500 Video

Request Quote Product Brochure Other Configurations

Specifications

Optical System NIS Infinity optical system
Viewing Head Widefield or ergonomic binocular or trinocular viewing head. Ergo tilting heads are adjustable from 0 to 35. Trinocular viewing heads have a 3-position beam splitter (0:100, 100:0, 80:20).
Eyepieces WF 10x/22mm focusable eyepieces with eyeguards. Eyepiece accepts a 26.5mm reticle. Optional 15x and 20x eyepieces are also available.
Nosepiece Reversed sextuple, ball bearing nosepiece with positive click stops to ensure parcentration.
Objectives Clinical Labs: NIS Plan achromat 2x, 4x, 10x, 20xR, 40xR, 50xR, 60xR and 100xR oil.
Research/Pathology: NIS S-Plan APO 4x, 10x, 40xR and 100xR oil.
Stage Mechanical stage with GorillaTM Glass insert and tension adjustable controls. Size 302mm x 152mm with X-Y movement range of 78mm X 54mm. Optional pathology stage is available.
Condenser Achromat swing-out condenser 0.9 dry/1.25 oil on a rack and pinion with iris diaphragm.
Stand Cast alloy aluminum.
Illumination 3 watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use. Universal power supply 110v-240v.
Focusing System Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear.
Accessories Dust cover, immersion oil and instruction manual.
Microscope Dimensions 300mmL x 425mmW x 450mmH
Physical weight 30lbs.
Warranty 5 year limited warranty for parts, labor, and electronic components. 1 year warranty on LED bulb.

Optional Accessories

  • Digital camera
  • Multi-viewing configurations (2,3, and 5 viewing positions)
  • Fluorescence attachments
  • Plan achromat objectives:2x, 4x, 10x 20xR, 40xR, 50xR oil, 60xR and 100xR oil
  • Turret phase contrast condenser, darkfield dry condenser (N.A. 0.7-0.9), darkfield oil condenser (N.A. 1.25-1.36)
  • Simple polarizer/analyzer
  • Reticles
  • Gout kit
  • Microscope carry case
