ACCU-SCOPE® EXI-310 Microscope

ACCU-SCOPE Logo

Authorized Distributor

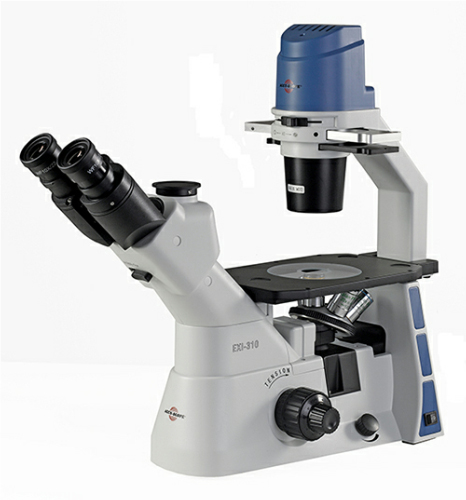

ACCU-SCOPE EXI-310

ACCU-SCOPE's EXI-310 Inverted Tissue Culture Microscope has numerous options and configurations. Choose from three standard configurations or choose a modular system for complete customization for live cell observation including brightfield, phase contrast, fluorescence or any combination. With Infinity-corrected Plan optics and high intensity LED illumination, the EXI-310 produces beautifully clear images for cell culture observation and imaging. It's compact size and ergonomic design offers a comfortable fit with worksite demands in teaching, clinical, and laboratory applications.

Request Quote Brochure

Specifications

Optical System AIS Infinity optical system, anti-fungal.
Observation Method Brightfield, Phase Contrast, Epi-Fluorescence
Viewing Body Trinocular, inclined 45°; Interpupillary distance: 54mm-75mm, Siedentopf type; Eyepiece/camera port (standard): 100/0:80/20, Fluorescence: 100/0:0/100.
Eyepieces WF 10x/22mm FOV focusing eyepieces with roll down eyeguards; Optional 15x/16mm, 20x/12.5mm
Nosepiece Side facing quintuple nosepiece
Objectives Available objectives to select from: LWD Plan Phase 4x, 10x, 20x and 40x; LWD Plan 2x, 4x, 10x, 20x, 40x and 60x; LWD Plan Fluor 4x, 10x, 20x, 40x and 60x; LWD Plan Fluor Phase 20x and 40x
Stage Fixed, plain stage, 160mm x 250mm glass and aluminum insert plates (Optional attachable mechanical stage right hand coaxial control, movement range 120mm x 78mm)
Holders Ø35mm petri dish holder, Ø54mm dish and hemocytometer/glass slide holder, Terasaki plate holder
Condenser ELWD condenser N.A. 0.3, W.D. 72mm
Slider Pre-centered phase slider 4x/10x, 20x/40x annuli and BF position; secondary slider for filters for enhanced illumination techniques
Stand Cast alloy aluminum.
Illumination 5 watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use. Universal power supply 110v-240v.
Epi-Fluorescence LED, Metal Halide or Mercury
Focusing System Coaxial coarse and fine focus with adjustable tension control; all brass gears
Accessories Filters: Green 550mm interference (with phase units only) and ground glass, dust cover, and instruction manual (Optional 45mm SIF800 infrared interference; ND25 or ND50filters
Microscope Dimensions 515mmL x 248mmW x 473mmH (non-fluorescence units)
Physical weight 21.5lbs.
Warranty 5 year limited warranty for parts, labor, and electronic components. 1 year warranty on LED bulb.

Optional Accessories

  • Digital CMOS, CCD or HD camera
  • 0.35x, 0.50x, 0.65x and 1.0x c-mount adapters
  • WF15x/16mm or WF20x/12.5mm eyepieces
  • LWD Plan phase objectives: 4x, 10x, 20x, and 40x; LWD Plan 2x, 4x, 10x, 20x, 40x, and 60x; LWD Plan Fluor 4x, 10x, 20x, 40x and 60x; LWD Plan Fluor Phase 20x and 40x
  • Attachable mechanical stage
  • Auxiliary stages
  • Ø35mm petri dish holder, Ø54mm dish and hemocytometer/glass slide holder, Terasaki plate holder
  • Reticles
  • 45mm IF550nm green, and neutral density ND25 and ND50 filters
  • Phase centering telescope - 30mm O.D.
