ACCU-SCOPE® EXM-150 Series

ACCU-SCOPE Logo

Authorized Distributor

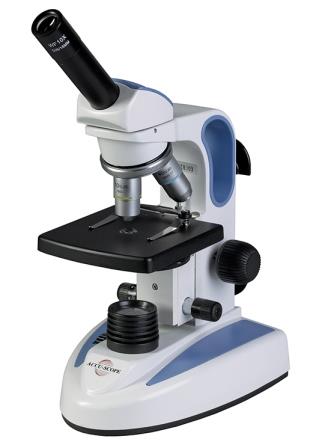

ACCU-SCOPE EXM-150

ACCU-SCOPE's EXM-150 Series is a high performance student-proof microscope with a compact design. With a newly designed LED illumination system for both corded or cordless operation, this is a superb choice for schools, technical institutes, or hobbyists.

Request Quote Product Brochure

Specifications

Optical System DIN Optical System, f=160mm
Viewing Head Monocular dual inclined or inclined/vertical teaching head, inclined 45° and 360° rotatable
Eyepieces WF10x eyepiece, 18mm field of view with pointer. Eyepieces are locked-in to prevent classroom tampering.
Nosepiece Rear facing three-hole, ball bearing nosepiece with positive click stops to ensure parcentration. A quadruple nosepiece is provided on EXM-151 models.
Objectives Standard configuration: DIN Achromat 4x, 10x, 40xR*. EXM-151 models also include a 100xR oil* objective. (*spring-loaded)
Stage Stage size 119mm x 119mm with stage clips or factory installed double-plate mechanical stage with low position controls and iris diaphragm.
Condenser N.A. 0.65 condenser with five aperture disc or iris diaphragm depending on the model. A N.A. 1.25 abbe condenser with iris diaphragm on a spiral mount is supplied on EXM-151 models.
Stand Cast alloy aluminum with built-in carry handle and cord hangers.
Illumination Variable and rechargeable LED illuminator. LED illuminators will about 4 hours on a single charge and the expected bulb life is 20,000 hours.
Focusing System Separate coarse and fine focus adjustments controls. A tension adjustment is on the coarse control. Built-in clutch system and pre-set focus stop prevents accidental damage to objectives and slides.
Accessories Dust cover and instruction manual
Microscope Dimensions 270mmL x 180mmW x 322mmH
Physical weight 8lbs.
Warranty 5 year limited warranty for parts, labor, and electronic components. 1 year warranty on LED bulb.

Optional Accessories

  • Dual inclined teaching head
  • Inclined/vertical teaching head
  • WF15x and WF20x eyepieces
  • 20xR, 60xR and 100xR objective
  • Eyepiece cameras
  • Microscope carry case
