Meiji MT-10 Series

Meiji Logo

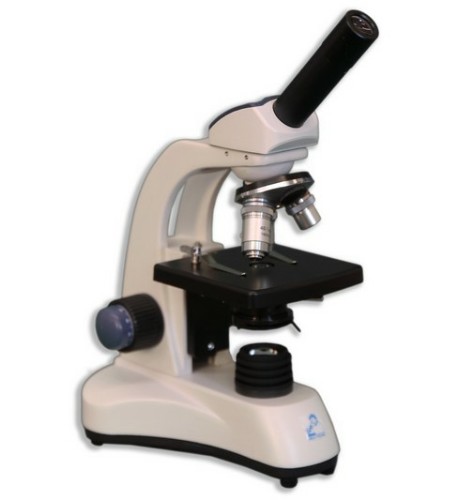

Meiji MT-10 Upright Microscope

Meiji's MT-10 Series is a great entry level microscope, offering students crisp, clear visibility of samples and cool LED illumination at an affordable price. The MT-10 has an ergonomic hand grip for compact, easy storage. A great choice for educational settings and hobbyists.

Request Quote Product Brochure

Specifications

Viewing Head Monocular 45° inclined tube
Eyepieces Secured DIN WF10x/18 mm with pointer. Rubber eyeguards included.
Nosepiece Revolving quadruple forwarded nosepiece on ball-bearings
Objectives Achromat corrected 4x/0.13, 10x/0.25 S40x/0.65 objectives.
Anti-Fungus Coating All optical parts are anti-fungus treated for mold prevention.
Stage Plain 123 x 119 mm stage with 2 object clamps.
Condenser N.A. 1.25 Abbe condenser with iris diaphragm lever for height adjustability.
Illumination Intensity adjustable 1W LED illumination with external power supply.
Focusing System Coaxial coarse and 200 µm fine adjustments, 2µ precision. Friction adjustment.
Accessories Dust cover and instruction manual
Box Size 25" x 15" x 11"
Physical weight 10lbs (4.5kg)
Manufactured 100% made in Holland
Warranty 2 year limited warranty

Optional Accessories

  • Binocular viewing head: 30° inclined tubes
  • Integrated mechanical stage on MT-14 model
  • Objectives: S60x/1.25, S100x/1.25
