Meiji MT-30 Series

Meiji Logo

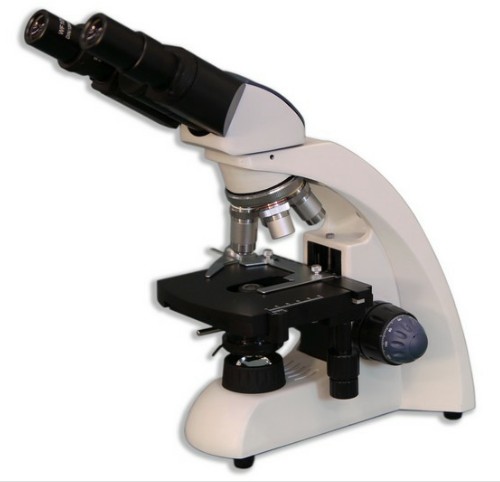

Meiji MT-30 Upright Microscope

Meiji's MT-30 LED Series is an advanced student microscope, designed for rugged day to day use. Precision optics and LED illumination, along with the cordless feature make this a great choice for K-12 grades. A digital model is available with built in camera and software.

Request Quote Product Brochure

Specifications

Viewing Head Binocular 30° inclined tube
Eyepieces Paired DIN WF10x/20mm. Field of view 23.2mm. Rubber eyeguards included.
Nosepiece Revolving quadruple reversed nosepiece on ball-bearings
Objectives Achromat corrected 4x/0.13, 10x/0.25 S40x/0.65 and S100x/1.25 objectives.
Anti-Fungus Coating All optical parts are anti-fungus treated for mold prevention.
Stage 130mm x 130mm stage with integrated mechanical stage
Condenser Abbe condenser, N.A. 1.25 with iris diaphragm and lever for height adjustability.
Illumination Intensity adjustable 1W LED illumination with internal power supply / charger and 3 rechargeable NiMH AA batteries.
Focusing System Coaxial coarse and 200 µm fine adjustments, 2µ precision. Friction adjustment.
Accessories Dust cover and instruction manual
Box Size 21" x 15" x 11"
Physical weight 15lbs (6.8kg)
Manufactured 100% made in Holland
Warranty 2 year limited warranty

Optional Accessories

  • Digital model available (MT-31) with binocular 30° inclined tube equipped with a 3.2MP 1/3 inch CMOS Color USB2 camera @ 1280 x 1024 pixels.
  • ImageFocus 4 capture & analysis software is supplied with digital model. The software is compatible with Windows XP, Vista, Windows 7 & 8, both 32 and 64 bit platforms.
