Meiji MT-40

Meiji Logo

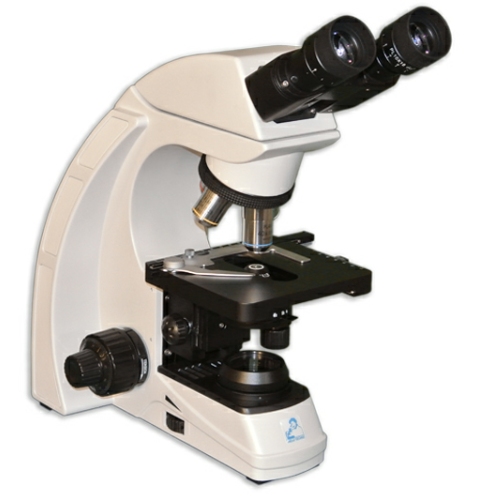

Meiji MT-40 Upright Microscope

Meiji's MT-40 LED microscope is a great choice for a small lab, medical school, veterinary clinic, or physicians office. The MT-40 has a cast aluminum base and compact design for laboratory settings. These advanced student microscopes offer a new optical standard of precision optics. LED illumination with intensity control provides maximum brightness with no heat. This biological microscope is both practical and affordable.

Request Quote

Specifications

Viewing Head Siedentopf type design inclined binocular 30°, rotatable 360°. Interpupillary distance 48-75mm.
Eyepieces Paired Plan HWF10x/20mm F.O.V. with integrated diopter adjustment. Rubber eyeguards included.
Nosepiece Revolving quadruple reversed nosepiece on ball-bearings that is factory centered.
Objectives Infinity corrected Plan Achromat 4x/0.10, 10x/0.25 S40x/0.65 spring loaded, and 100x oil/1.25 spring loaded objectives.
Anti-Fungus Coating All optical parts are anti-fungus treated for mold prevention.
Stage 140mm x 132mm stage with integrated mechanical stage, X-Y movement of 76mm x 50mm.
Condenser Abbe condenser, N.A. 1.25 with a slider housing for sliders and pinion for vertical movement
Illumination Intensity adjustable 3W LED illumination rated for 25,000 hours with internal power supply.
Focusing System Coaxial coarse and fine adjustments with adjustable tension control and upper limit stop to prevent objectives from articulating with slides. Internal brass fine focus gears.
Accessories Dust cover and instruction manual
Box Size 21" x 15" x 11"
Physical weight 16lbs (7.3kg)
Warranty 1 year limited warranty
