Meiji MT-4000 Series

Meiji Logo

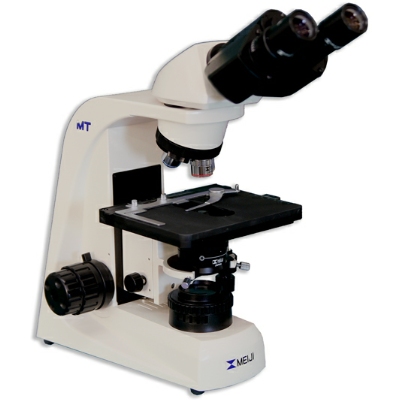

Meiji MT-4200 Upright Microscope

The MT-4000 Series is a newly designed upright Biological Compound Microscope system. Manufactured in Japan, it's ergonomic design and easy to use stage meets the needs of researchers and clinical laboratory specialists. This series offers lots of superior features including newly engineered high performance optics based on Meiji Techno's ICOS™ Optical System (Infinity Corrected Optical System F-200mm) which give super bright, crisp images with good color rendition and outstanding flat fields of view. A variety of accessories are available and modular design allows for attachment of a CMOS/CCD HDMI video camera or any type of 35mm Digital SLR camera. Contrast methods are available: Brightfield and Phase Contrast. MT4200H Halogen Binocular Brightfield Microscope is pictured here.

Request Quote Product Brochure

Specifications

Viewing Head Siedentopf type design inclined binocular 30°, rotatable 360°. Interpupillary distance 53mm-75mm. Scale diopter adjustment for diopter adjustment.
Eyepieces KHW10X compensating eyepieces, Field no 20, Tube O.D. 23.2mm (each).
Nosepiece Smooth operating ergonomic quintuple nosepiece
Objectives Infinity corrected optical system, F-200mm. Plan Achromat Objectives: 4x, N.A. 0.10, W.D 15.3mm, 10x, N.A0.25, W.D. 7.3mm, 40x N.A. 0.65, W.D. 0.72mm, 100x, N.A. 1.25 oil, W.D. 0.14mm
Anti-Fungus Coating All optical parts are anti-fungus treated for mold prevention.
Stage Ceramic coated flat-top stage, 170mm x 140mm, 80mm x 52mm (factory installed). Attachable finger assembly for stable slide placement.
Condenser Abbe condenser, N.A. 1.25 with iris diaphragm and dove-tail mount.
Filter Blue clear filter, 44.0mm diameter, unmounted
Illumination Halogen models have built-in high efficiency 30-Watt transmitted halogen illumination with adjustable rheostat. LED models have 3W LED, 5500K color temperature. Choice of 115Vor 220V.
Focusing System Japanese precision coaxial coarse and fine controls with graduation reading 2 microns per division. Range of travel is 23mm. Incorporates tension adjustment and safety Auto-focus stage stop lever.
Accessories Dust cover and instruction manual
Manufactured 100% Made in Japan
Footprint Size 263mm(D) x 176mm(W); Binocular head type: 390mm(D) x 410mm(H) x 210mm(W)
Physical weight 29lbs (8.0kg)
Warranty Lifetime limited warranty

Optional Accessories

  • Trinocular viewing head for camera integration
  • Ergonomic viewing head in either binocular or trinocular with 10-50° adjustable inclination. Ergonomic trinocular comes with photo/video attachment with sliding 80/20 beam splitter.
  • Beam splitter
  • Eyepieces: Widefield High Eyepoint 15X, 20X, or 10X focusing or non-focusing eyepiece that accepts 21mm reticle
  • Objectives for Brightfield, Darkfield, and Phase Contrast observation modes
  • Motorized focus and stage controls
  • Polarizer / Analyzer
  • Assorted filters
  • Reticles
  • Camera
