Meiji MT-50 Series

Meiji Logo

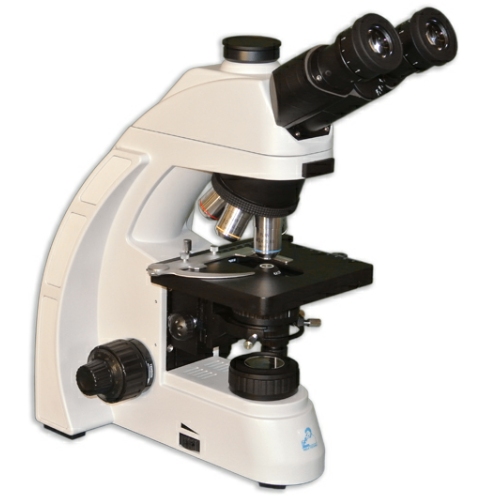

Meiji MT-51 Upright Microscope

The MT-50 LED Series is Meiji's Advanced Higher Academic Biological microscope with new precision optics. It is designed for rugged day to day use in labs, clinics, and education settings. The LED illumination offers no heat, providing no external stress on the stage sample. Another super, affordable choice for your biological microscope needs. Trinocular model MT-51 pictured here for use with a camera.

Request Quote

Specifications

Viewing Head Siedentopf type design inclined binocular 30°, rotatable 360°. Interpupillary distance 48-75mm.
Eyepieces Paired Plan HWF10x/20mm F.O.V. with integrated diopter adjustment. Rubber eyeguards included.
Nosepiece Revolving quadruple reversed nosepiece on ball-bearings that is factory centered.
Objectives Infinity corrected Plan Achromat 4x/0.10, 10x/0.25 S40x/0.65 spring loaded, and 100x oil/1.25 spring loaded objectives.
Anti-Fungus Coating All optical parts are anti-fungus treated for mold prevention.
Stage 149mm x 138mm stage with integrated mechanical stage, X-Y movement of 76mm x 50mm.
Condenser Abbe condenser, N.A. 1.25 with a slider housing for sliders and pinion for vertical movement
Illumination Intensity adjustable 3W LED illumination rated for 25,000 hours with internal power supply.
Focusing System Coaxial coarse and fine adjustments with adjustable tension control and upper limit stop to prevent objectives from articulating with slides. Internal brass fine focus gears.
Accessories Dust cover and instruction manual
Box Size 21" x 15" x 11"
Physical weight 16lbs (7.3kg)
Warranty 1 year limited warranty

Optional Accessories

  • Trinocular model available (pictured here - MT-51)
  • C-Mount adapter with 0.35X lens or 0.5X lens
  • Camera
