Meiji MT-90 Series

Meiji Logo
Meiji MT-90 Upright Microscope

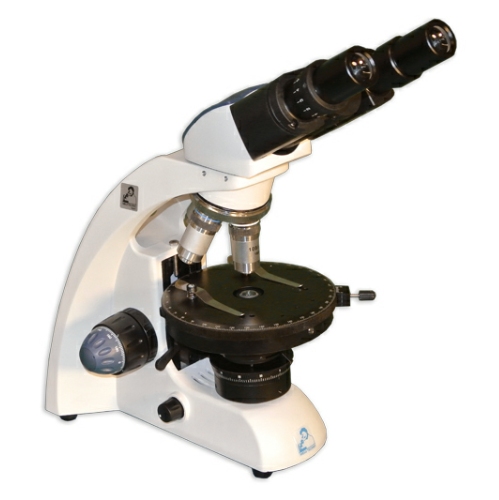

The Meiji MT-90 Series is a best buy and outstanding choice for entry level geology education. The MT-93 pictured here is equipped with a rotatable 135mm round metal stage with 2 stainless steel clamps and vernier graduations with an allen locking screw. This microscope comes with Meiji's new optical standard of precision optics. The unit is built to last daily classroom wear and tear. The ergonomic hand grip makes it easily portable and the compact design provides for easy storage.

Request Quote Product Brochure

Specifications

Viewing Head Binocular head with 45° inclined tube, fully rotatable over 360°. Dioptric adjustment for one eyepiece. Tube length 160mm. Interpupillary distance 54mm to 75mm
Eyepieces Wide Field eyepieces HWF10x/18mm. Rubber eyeguards included.
Nosepiece Revolving quadruple reversed nosepiece on ball-bearings with click stops for four objectives.
Objectives Achromat DIN Semi-Plan 4x, 10x, S40x spring-mounted, and S100x spring-mounted objectives.
Anti-Fungus Coating All optical parts are anti-fungus treated for mold prevention.
Stage 135mm round metal stage with two stainless steel clamps. Vernier with Allen locking screw.
Condenser Abbe condenser, N.A. 1.25 with iris diaphragm and lever for height adjustability.
Polarizer Swing-out polarizer fits on the light collector lens and is 360° graduations rotatable.
Analyzer Analyzer is fitted in a slider and located under the head.
Illumination Halogen 20 Watt adjustable illuminator for even illumination and optimal color rendering. Variable intensity controls are ergonomically placed.
Focusing System Coaxial coarse and fine adjustment knobs on both sides with 0.002mm graduations. Friction of focus control can be adjusted. Built-in protection system prevents damage to specimen and objective.
Accessories Dust cover and instruction manual
Box Size 21" x 15" x 11"
Physical weight 15lbs (6.8kg)
Manufactured 100% made in Holland
Warranty 2 year limited warranty

Optional Accessories

  • Digital model available with built in 1.3MP 1/2 inch chip CMOS USB2 camera
