UNITRON CFM

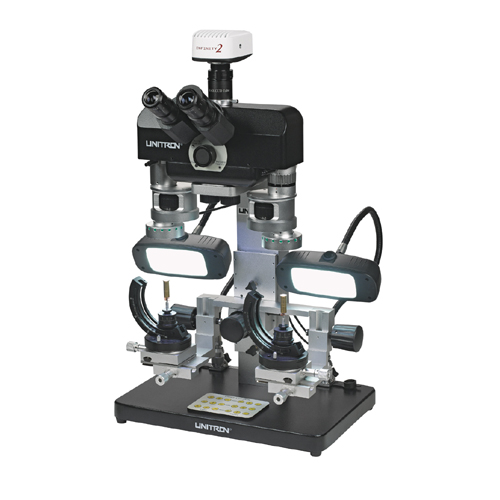

UNITRON's CFM microscope was designed with the collaboration of police organizations, forensic scientists and educators. With the precision engineered comparison bridge that supports two sets of matched objective sets on a 5-step magnification changer, evidence can be observed simultaneously. The CFM series offers incredible value and performance. Shown with fluorescent gooseneck illuminators and optional camera.

Request Quote Product Brochure

Specifications

Viewing Head Choice of ergo tilting head or standard 45° viewing angle head. Images can be viewed as 100% right, 100% left, split or superimposed. Split image dividing line can be adjusted to any desired line width for maximum flexibility. Interpupillary distance adjustment range 55mm-75mm.
Eyepieces CWF 10x eyepieces, 22mm field of view and CWF 20x eyepieces, 13mm field of view.
Objectives 5 matched magnification steps - 0.8x, 1.25x, 2x, 3.2x and 4.8x
Working Distance 95mm
Stage Two 65mm diameter circular, ball bearing stages with horizontal coaxial stage controls. The stage movement rages when moved independently are 56mm of X-axis, 56mm of Y-axis, and 56mm of Z-axis. Stage movement range when using the combined focus block is 80mm on the Z-axis. Each stage has gradient adjustments in both directions. A wide range of stage mounting plates, wire holders, bullet and cartridge holders is included.
Illumination 2.5 watt circular LED Ring Light mounted to each optical system. Two 3 watt LED flexible light guides with focusing lens. Built-in touch pad to control all lighting options.
Accessories Dust cover and instruction manual.
Warranty 5 year limited warranty for parts, labor, and electronic components.

Optical Data

Auxiliary Objective Working Distance (mm) EYEPIECE CCD Adapter 0.4X
WF10X/22 WF16X/16 WF20X/13 WF30X/9
Total Magnification Total Magnification Total Magnification Total Magnification
0.8X 95 8X/27.5 12.8X/20 16X/16.2 24X/11.3 0.32X
1.25X 95 12.5X/17.6 20X/12.8 25X/10.4 37.5X/7.2 0.5X
2x 95 20X/11 32X/8 40X/6.5 60X/4.5 0.8X
3.2x 95 32X/6.9 51.2X/5 64X/4 96X/2.8 1.28X
4.8x 95 48X/4.6 77X/3.3 96X/2.7 144X/1.9 1.9X

Optional Accessories

  • Digital & HD cameras
  • Eyepieces: CWF 16x/16mm field of view, CWF 25x/13mm and CWF 30x/9mm
  • Auxiliary objectives: 0.4x and 2.0x
  • CCD Adapters: 0.4x and 1.0x
  • Photo tube
  • Transmitted light stage, 95mm diameter, with 3 watt LED transmitted light source to observe transparent or translucent objects.
  • 1 watt coaxial LED illuminators
  • Daylight, UV, green or red LED circular attachable light guides
  • Polarizer
