UNITRON® ion 4.3" DIGITAL HAND-HELD MICROSCOPE

Unitron Logo

Authorized Distributor

UNITRON ion 4.3

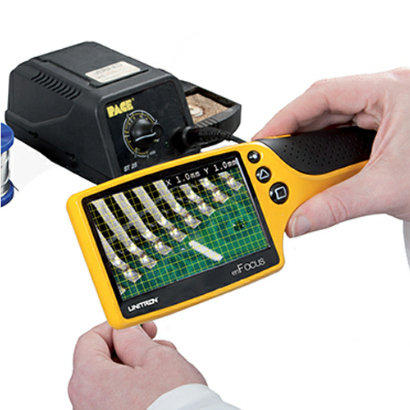

UNITRON's ion 4.3" digital hand-held microscope is a nice solution for inspections and quality control in hard to reach and low-light areas. This award winning handy tool has a super compact, portable design and gives sharp, crystal-clear images with a fast response time and low power consumption. Key features include a unique near and far focus feature, magnification range of 4x-14x, built-in adjustable LED lighting, integrated stand, and ability to capture and store up to 100 images with date stamp. The ion 4.3" has simple X-Y on-screen dimensioning with cursor and grid functions.

Request Quote Product Brochure

Specifications

Screen Size/Resolution 4.3" diagonal TFT display; 480 x 272 pixels
Magnification Far focus: 4x-8x; Near focus: 7x-14x
Image Storage Mode 100 images in 480x272 pixels; 24-bit bitmap format transferable to PC via micro USB
Depth of Field 3.5cm in overview; 1.5cm close
Dimensioning Cursors/Grids Yes
Sensor 3MP CMOS, RGB565 video at 30 fps
Battery/Charger Rechargeable Lithium Ion Battery; 5 hours of use time; 4 hours charge time with supplied 100v-240vac 50/60Hz charger/adapter
Connection Cable Micro USB
Unit Supply Voltage 5v DC, micro USB Connector
Weight 225kg
