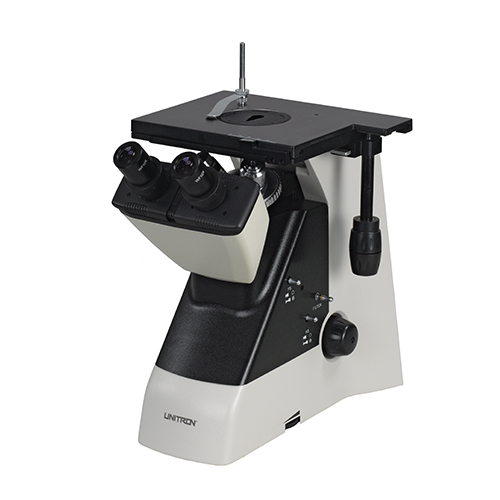

UNITRON's microMet Microscope is small and versatile, designed for routine metallurgical applications. A binocular viewing head, variable, centerable illuminator, and integrated mechanical stage make this is a great choice for educational and industrial settings.

Request Quote Product Brochure


Optical System UNITRON LWD M DIN achromat 10x, and plan achromat 20x and 50x objectives
Eyepieces Widefield 10x/18mm and Widefield 12.5x/14mm eyepieces are supplied with each unit
Viewing Head 45° inclined binocular viewing head with 54-75mm interpupillary adjustment
Nosepiece Three position revolving nosepiece
Observation Method Brightfield
Focusing System Vertical action movement revolving nosepiece (fixed stage); coaxial coarse and fine focus adjustment
Stage Integrated double layer mechanical stage with stage clip, 180mm x 155mm
Illuminator 12 volt 20 watt variable halogen illuminator with lamp centering mechanism
Filters Integrated green, yellow, and neutral density filters.
Dimensions & Weight 216mm(w) x 381mm(d) x 394mm(h); 17lbs.
Accessories Dust cover and instruction manual
Warranty 5 year limited warranty for parts, labor, and electronic components.

Optional Accessories

  • Objectives: LWD M Plan 40x, 80x and 100x dry
  • Reticles: grain size 26mm diameter, crossline, grid
  • Stage micrometers with NIST traceability are available
