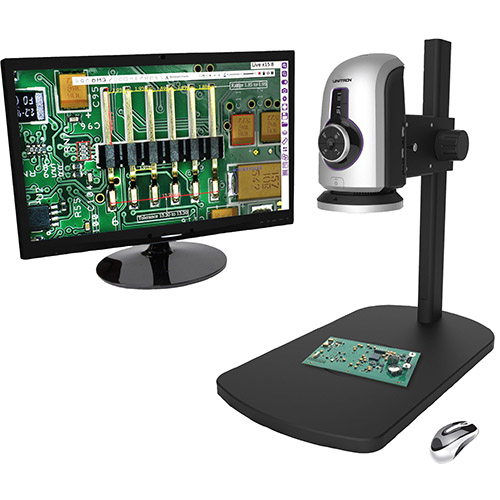

UNITRON's omni and omni Lite Digital Imaging systems are integrated full HD digital microscope and measurement systems that function without a PC. The omni has a custom platform with a configurable and upgradeable set of inspection and measurement applications, including focus stacking, 2D measurement*, side by side and overlay image comparison, custom on-screen reticle*, and lens distortion. Full HD live video is delivered by the omni's image processing and control engine at 60 frames per second. The Graphical User Interface is a custom designed mouse-controlled interface for efficient operation and control of the full application suite. The omni has the ability to stay in calibration over the entire zoom range, making it remarkable from other systems. Shadow-free illumination and glare reduction are benefits of omni's quick response, cable-free interchangeable illumination modules with intensity and quadrant control. This system is an excellent solution for quality control, testing, rework, assembly, inspection and documentation work. Monitor not included. *Note: 2D measurement and on-screen reticule features are not available on the omni Lite.
Request Quote Product BrochureSpecifications
| Camera resolution | HD 1080p: 1920 x 1080; 60fps; 30x optical / 2x digital |
| Zoom | 5D lens; 2.5x - 122x (24" screen) |
| Basic Functions | Auto / Manual focus; brightness adjustment, magnification adjustment, snapshot, overview, high contrast mode, height adjustable |
| Response Time | 5ms |
| Input / Output Modes | HDMI Output • USB 2.0 port x 4
RJ45 Ethernet network connector General purpose IO port x 3 • DC 24v power jack |
| Monitor Format | HD ready or Full HD 16:9 (recommended) - monitor not included |
| Power Supply | 100/240v; 50/60Hz; 24w power consumption |
| Dimensions | 216mm(L)x 125mm(W) x 136mm(H) |
| Weight | 1.75kg |
| Temperature | Storage: -10C to 60C Operating: 5C to 40C |
| Optional Accessories | LED ring lights, fiber optic illuminators, Auxiliary objectives, Polarizers, Stands |
Magnification (Specifications using a 24" monitor)
| Lens Diopter (mm) |
Max Height (mm) |
Min Height (mm) |
Min Mag* |
Max Mag* Optical/Digital |
FOV Min Mag (mm) |
FOV Max Mag (mm) |
Max & Min Depth of Field |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 200 | 170 | 2.5 | 62/122 | X:231 | Y: 136 | X: 8/4 | Y: 5/2 | 78 | .50 |
| 10 | 100 | 85 | 4 | 121/237 | X:60 | Y:50 | X: 5/2 | Y: 3/1 | 57 | .20 |
*Depth of field measured with optimal image settings
