UNITRON® Z650HR ZOOM STEREO MICROSCOPE SERIES

Unitron Logo

Authorized Distributor

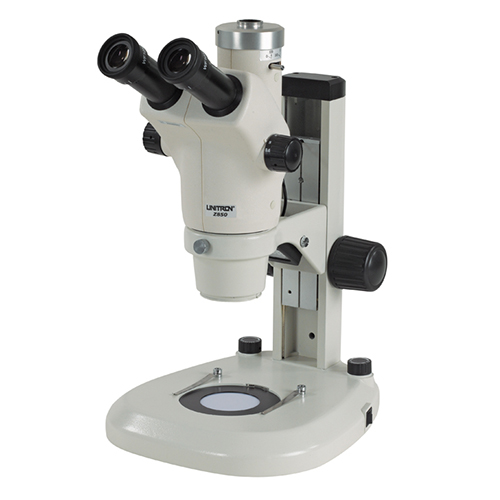

UNITRON Z650HR

UNITRON's Z650HR zoom stereo microscope has a new design including a total reflection prism system bringing you higher resolution, contrast, and brighter images. The built-in camera port allows cameras to be mounted directly to the Z65HR. An ergonomic design, 115mm working distance, and WF10x/23mm focusing eyepieces make this microscope a super choice for industrial inspection. The Z650HR series is a high performance zoom stereo designed to handle years of heavy use.

Request Quote Product Brochure

Specifications

VIEWING BODY
Optical system Twin zooming objectives
Viewing Bodies Trinocular 0/100light split with 0.55 x built-in c-mount lens, inclined 30°
Anti-Mold Anti-mold and airtight design
Magnification 0.6x to 5.0x (6x to 50x with 10x eyepieces); Zoom Ratio: 8:1
Working Distance 115mm (4.52 inches)
Interpupillary Distance Adjustment 55-75mm
Camera Adaptability 0.55x built-in c-mount lens
Eyepieces WF 10x focusing eyepieces with built-in diopter adjustment (paired). 23mm field of view (eyepiece accepts 26.5mm reticle).
Auxiliary Objectives 0.5x (220mm working distance); 0.7x (152mm working distance); 2.0x (43mm working distance)
STANDS
Plain Focusing Stand 76mm focus mount diameter, 100mm focusing stroke, 240mm(l) x 290mm(d) x 318mm(h), 125mm black & white stage plate
Pole Stand 76mm focus mount diameter, 305mm pole height, 193mm focusing stroke, 240mm(l) x 290mm(d) x 318mm(h), 125mm black & white stage plate
LED Reflected/Transmitted Illuminated Stand with Coarse or Coarse/Fine Focusing 76mm focus mount diameter, 100mm focusing stroke, 240mm(l) x 292mm(d) x 318mm(h), 100mm clear glass stage plate and black & white stage plate. Variable 12v/4w transmitted and 12v/2w reflected LED illumination; average LED life expectancy-7,000 hours. Color temperature: 6200° - 70000° Kelvin.
Diascopic Stand with Halogen or Fiber Optic Illumination 76mm focus mount diameter, 100mm focusing stroke, 240mm(l) x 310mm(d) x 383mm(h), 280mm clear glass stage plate, tiltable mirror provides direct and oblique illumination with either variable 6v20w halogen illuminator or rear mount and adapter to accept 1/2" light guide. Dolan Jenner MI-150 fiber optic illuminator with 15" light guide.
Boom Stand Universal boom stand with Delrin® inserts in focus block for extra smooth movements, horizontal arm with bonder port, base dimensions 10" X 10", 14-3/8" vertical post, 20-3/8" horizontal post
Ball Bearing Stand Ball bearing boom stand, horizontal arm with bonder port, base dimensions 10" X 10", 15-1/2" vertical post, 23" horizontal post
Articulating/Flex Arm Stand Flexible arm stand, lockable 14-1/2" vertical motion range, 3' scannable range, horizontal or vertical mount
ADDITIONAL INFO
Accessories Dust cover and instruction manual.
Warranty 5 year limited warranty for parts, labor, and electronic components.

Optical Data

Auxiliary Objective Working Distance (mm) EYEPIECE
WF10X/23 WF15X/16 WF20X/12 WF30X/8
Total Magnification Visual Field (mm) Total Magnification Visual Field (mm) Total Magnification Visual Field (mm) Total Magnification Visual Field (mm)
115 6-50X 38.3-4.6 9-75X 26.7-3.2 12-100X 2.0-2.4 18-150X 13.3-1.6
0.5X 220 3-25X 76.7-9.2 4.5-37.5X 53.3-6.4 6-50X 40-4.8 9-75X 26.7-3.2
0.7X 152 4.2-35X 54.8-6.6 6.3-52.5X 38.1-4.6 8.4-70X 28.6-3.4 12.6-105X 19.0-2.3
2X 43 12-100X 19.2-2.3 18-150X 13.3-1.6 24-200X 10-1.2 36-300X 6.7-0.8

Optional Accessories

  • Digital & HD cameras with image analysis software.
  • Eyepieces: WF 15x focusing eyepiece, 16mm field of view (eyepiece accepts a 26.5mm reticle). WF 20x focusing eyepiece with built-in diopter adjustment and eyeguard, 12.5mm field of view (eyepiece does not accept a reticle). WF 30x focusing eyepiece with built-in diopter adjustment and eyeguard, 8mm field of view.
  • Light Sources: LED and fluorescent ring lights, 150w or LED fiber optic illuminators
