UNITRON Z850 ZOOM SERIES

Unitron Logo

Authorized Distributor

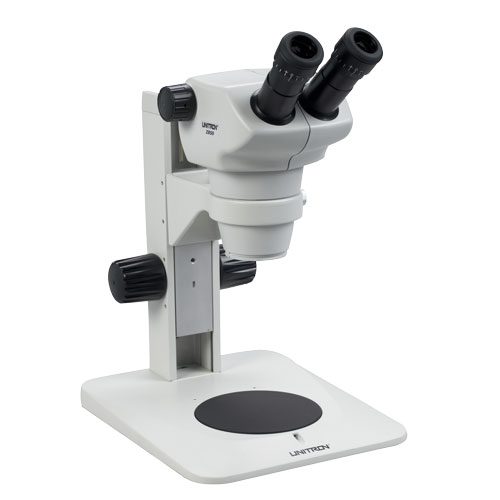

UNITRON Z850

UNITRON's Z850 zoom stereo microscope is a great choice for applications demanding a higher magnification range for industrial inspection, assembly, quality control, OEM integration, or research and education applications. The Z850 has a nice ergonomic design and is manufactured for rugged, long-term use. Available with choice of binocular or trinocular viewing head.

Request Quote Product Brochure

Specifications

VIEWING BODY
Optical system Twin zooming objectives
Viewing Bodies Binocular or Trinocular with 50/50 light split, inclined 45° and rotatable 360°
ESD Protection Viewing body is made from anti-electrostatic materials
Anti-Mold Anti-mold and airtight design
Magnification 0.8x to 5.0x with click stops at 1x, 2x, 3x, 4x, and 5x; Zoom Ratio: 6.3:1
Working Distance 115mm (4.52 inches)
Interpupillary Distance Adjustment 52-75mm
Camera Adaptability 0.4x or 0.5x c-mount adapters, photo tube
Eyepieces WF 10x/22mm with reticle holder (reticle size: 27mm), WF 15x/16mm with reticle holder (reticle size: 20mm), WF 20x/12.5mm
Auxiliary Objectives 0.5x (211mm working distance) and 2.0x (43.5mm working distance)
STANDS
Plain Focusing Stand 76mm focus mount diameter, 100mm focusing stroke, 240mm(l) x 290mm(d) x 318mm(h), 125mm black & white stage plate
Pole Stand 76mm focus mount diameter, 305mm pole height, 193mm focusing stroke, 240mm(l) x 290mm(d) x 318mm(h), 125mm black & white stage plate
LED Reflected/Transmitted Illuminated Stand 76mm focus mount diameter, 100mm focusing stroke, 240mm(l) x 292mm(d) x 318mm(h), 100mm clear glass stage plate and black & white stage plate. Variable transmitted and reflected LED illumination; average LED life expectancy-7,000 hours. Color temperature: 6200° - 70000° Kelvin.
Diascopic Stand with Transmitted Illumination Attachment 76mm focus mount diameter, 100mm focusing stroke, 255mm(l) x 310mm(d) x 382mm(h), 280mm clear glass stage plate, tiltable mirror provides direct and oblique illumination with either 6v20w halogen illuminator or fiber optic illuminators.
Boom Stand Base dimensions 254mm x 254mm (10" x 10"), vertical post-365mm, horizontal post-518mm. Physical weight 37lbs
Ball Bearing Boom Stand Base dimensions 254mm x 254mm (10" x 10"), vertical post-394mm, horizontal post-585mm. Physical weight 42lbs
Articulating/Flex Arm Stand Flexible arm stand, lockable 14-1/2" vertical motion range, 3' scannable range, horizontal or vertical clamp mount
ADDITIONAL INFO
Accessories Dust cover and instruction manual.
Warranty 5 year limited warranty for parts, labor, and electronic components.

Optical Data

Auxiliary Objective Working Distance (mm) EYEPIECE
WF10X/22 WF15X/16 WF20X/12.5
Total Magnification Visual Field (mm) Total Magnification Visual Field (mm) Total Magnification Visual Field (mm)
115 8-50X 27.5-4.4 12-75X 20.0-3.2 16-100X 15.6-2.5
0.5X 211 4-25X 55.0-8.8 6-37.5X 40.0-6.4 8-50X 31.2-5.0
2X 43.5 16-100X 13.8-2.2 24-150X 10.0-1.6 32-200X 7.8-1.3

Optional Accessories

  • Digital & HD cameras with image analysis software.
  • Light Sources: LED and fluorescent ring lights, fiber optic illuminators
  • Auxiliary objectives: 0.5x, 0.7x, 2.0x
  • Eyepieces: 15x focusing, 20x focusing
  • Reticles and stage micrometers
