ACCU-SCOPE® EXC-120 SERIES

ACCU-SCOPE Logo

Authorized Distributor

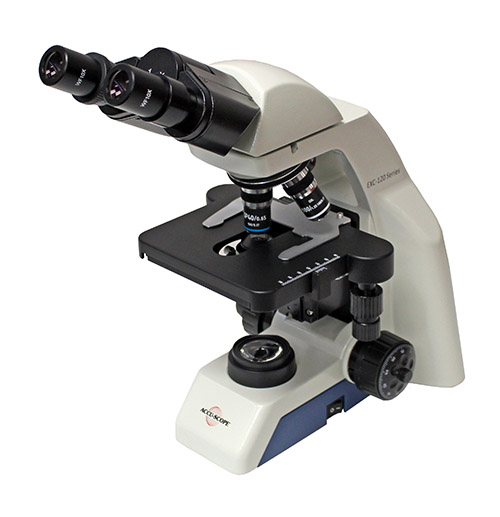

ACCU-SCOPE EXC-120

ACCU-SCOPE's EXC-120 Series is economical, durable and portable. Built to last with a choice of monocular, binocular or trinocular viewing heads, this is an attractive choice for educators and medical or veterinary settings.

Request Quote Product Brochure Image Gallery

Specifications

Optical System DIN Optical System, f=160mm, Anti-Mold
Viewing Head Choice of Monocular, Monocular with camera port, Binocular or Trinocular; Inclined 30° and rotatable 360°; Single diopter adjustment 55-72mm, Interpupillary distance adjustment 48-75mm binocular / 55-75 trinocular
Eyepieces WF10x/18.5mm field of view; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent classroom tampering. Eyepiece accepts 19mm reticle
Nosepiece Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration.
Objectives Choice of achromat, plan, or plan phase objectives. Standard configurations include 4x, 10x, Semi-Plan 40xR* and 100xR* oil (*spring-loaded).
Stage Stage size 150mm x 139mm with travel area 75mm(X) x 32mm(Y) movement with right hand control; vernier scale reading to 0.1mm
Condenser N.A. 1.25 Abbe condenser on a rack and pinion with iris diaphragm and swing-out filter holder.
Stand Cast alloy aluminum.; built-in fixed focus stop allows for rapid focusing while protecting specimens. Built-in carry handle and cord hanger.
Illumination Variable LED illumination; bulb life rated for 20,000 hours
Focusing System Coaxial coarse and fine focus controls with an adjustable tension cord; all metal gears
Accessories Dust cover, immersion oil and instruction manual
Microscope Dimensions: Standard Binocular Configuration 255mm (L) x 198mm (W) x 368mm (H)
Physical weight 15lbs.
Warranty 5 year limited warranty for parts, labor, and electronic components. 1 year warranty on LED bulb.

Optional Accessories

  • Digital camera
  • Monocular, monocular with camera port, binocular or trinocular (20% / 80%) viewing heads
  • Objectives: 2x Semi-plan with auxiliary lens; Plan 20xR, 50xR oil, 60xR, 100xR dry, 100xR water immersion
  • WF15x or WF20x eyepieces
  • 21mm reticles
  • Reticles
  • Turret phase contrast set
  • Darkfield objectives and condenser
  • Microscope carry case
