Meiji EM-30 Series

Meiji Logo

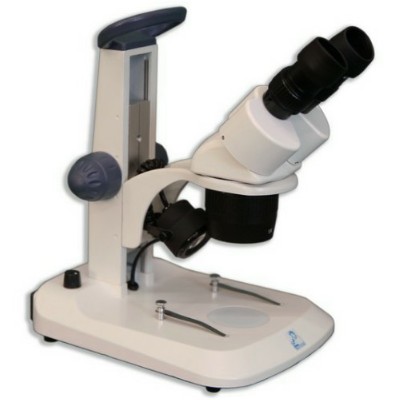

Meiji EM-30 Stereo Microscope

Meiji's EM-30 Series Turret Stereo microscopes have clean, crisp images over a wide field of view, with LED illumination. The EM-30 has a larger frame than the EM-20 model. Viewing biological specimens like plants and insects is easy as the stand allows the optics to be raised high enough for most any specimen. This microscope, designed for rugged use with a built-in carrying grip, is a fine choice for schools or hobbyists. Zoom models are available with binocular or trinocular.

Request Quote Product Brochure

Specifications

Viewing Head Binocular 45° inclined tubes, One ± 5 diopter adjustment, interpupillary distance between 55mm and 75mm
Eyepieces Paired WF10x/20mm eyepieces. Rubber eyeguards included.
Turret Objectives Model EM-30, EM-31 Revolving nosepiece with dual objectives. Model EM-30: 1x/3x (FOV 20mm/6.6mm). Model EM-31: 2x/4x (FOV 10mm/5.0mm). Working distance 100mm.
Anti-Fungus Coating All optical parts are anti-fungus treated for mold prevention.
Stand Rack and pinion design. Ergonomically designed base with 2 object clamps. Alloy metal cast, hardened off-white coated.
Illumination The 3 W transmitted and incident LED illuminators can be used simultaneously. Both light intensities can be adjusted separately.
Focusing System Coarse adjustment with tension control.
Accessories Dust cover and instruction manual
Dimensions 8.75mm (D) x 10.5mm (W)
Physical weight 11lbs (4.95kg)
Manufactured 100% made in Holland
Warranty 2 year limited warranty
