Meiji EM-30 Zoom Series

Meiji Logo

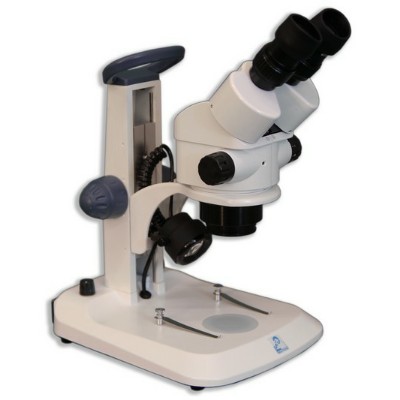

Meiji EM-32 Stereo Zoom Microscope

Meiji's EM-30 Series Zoom Stereo microscopes have clean, crisp images over a wide field of view, with LED illumination. The zoom model is offered with choice of binocular or trinocular. The EM-30 series has a larger frame than the EM-20 model. Viewing biological specimens like plants and insects is easy as the stand allows the optics to be raised high enough for most any specimen. This microscope, designed for rugged use with a built-in carrying grip, is a fine choice for schools or hobbyists. Turret model available with binocular.

Request Quote Product Brochure

Specifications

Viewing Head Binocular (model EM-32) or Trinocular (model EM-33) 45°inclined tubes, One ± 5 diopter adjustment, interpupillary distance between 55mm and 75mm
Eyepieces Paired WF10x/20mm eyepieces. Rubber eyeguards included.
Zoom Objectives Model EM-32, EM-33 Zoom Stereo 0.7x to 4.5x objective, magnification from 7x to 45x. Field of view 28.5mm to 4.4mm. Working distance 100mm.
Anti-Fungus Coating All optical parts are anti-fungus treated for mold prevention.
Stand Rack and pinion design. Ergonomically designed base with 2 object clamps. Alloy metal cast, hardened off-white coated.
Illumination The 3 W transmitted and incident LED illuminators can be used simultaneously. Both light intensities can be adjusted separately.
Focusing System Coarse adjustment with tension control.
Accessories Dust cover and instruction manual
Dimensions 8.75mm (D) x 10.5mm (W)
Physical weight 15lbs (6.8kg)
Manufactured 100% made in Holland
Warranty 2 year limited warranty

Optional Accessories

  • C-Mount Camera Adapters: 0.33x lens for 1/3" cameras or 0.5x lens for 1/2" cameras
  • Auxiliary lens 0.5x, W.D 165mm
  • Eyepieces: Super widefield 20x, fits 30mm eyetube
  • Boom Stand: Triple joint articulating table mount stand with a built-in 84.8mm holder, can also be mounted with 4 screws to lab table.
